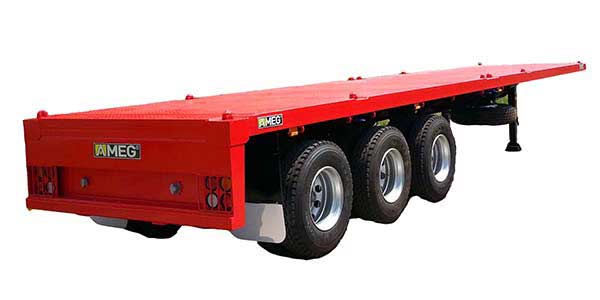

40ft Flatbed Semi Trailer with 3 Axles
40ft Flatbed Semi Trailer with 3 Axles
| Overall (L*W*H) | 12500*2500*1530mm |
| Payload | 50tons |
| Main Beam | High strength low alloy Q345 steel |
| Floor | 3mm checkered plate |
| Side beam: | 16# channel steel |
| King Pin | 2" (50#) high tensile steel bolted type |
| Landing Leg | 28T capacity |
| Suspension | American Type Heavy duty under mount tri-axle suspension with equalizers with 10 layers leaf spring(width: 90mm, thick: 13mm) |
| Axle | 150x150 Square axle with 13 tons capacity. 3 pieces. |
| Tire | 12R22.5 Tire,12pcs, China Famous Brand. |
| Rim | 9.00*22.5, 10 Holes ISO, 12pcs |
| Brake System | Dual air brake system, WABCO relay emergency valve. |
| Brake Chamber | Type 30/30 on the rear two axles, Type 30 on front axle. |
| Electrical System | 24 volt lighting system with modular wiring harness, 7 way ISO receptacle in front of the front bolster, norms NO.1185, Chinese standard. |
| Twist Lock | 12 units, ISO Standard. |
| Spare Tire Carrier | Equipped two sets per trailer |
| Spare Tire | 1 unit |
| Side Guard | Standard |
| Tool Box | 1 unit, 1m long. |
| Light & reflector | Rear light, rear reflector, turn indicative light, side reflector,fog lamp,number plate light |
| Painting | Sandblasted, anti-rust chassis surface with 1 layer of anti-corrosive primer and 2 layers of top coats |
The manufacturer have the right for making the technical alterations or changes for better improvement without prior notice.
